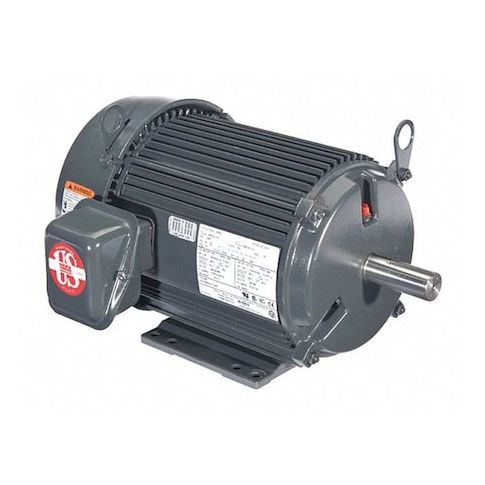

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U5P1D
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
This 5 HP three-phase general purpose motor from US Motors is designed for continuous duty applications, offering a high level of efficiency and reliability. With a nameplate RPM of 3600 and a frame size of 184T, it is suitable for a wide range of industrial and commercial uses, including conveyor systems, pumps, and fans. The motor's totally enclosed fan cooled design ensures quiet operation and long lifespan, while its rigid base mounting type provides stable and secure operation. Ideal for applications in harsh environments, this motor is certified to meet CE, CSA, and UL standards.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial Pumping Systems
- Factory Automation and Assembly Lines
- Paper Mill and Pulp Processing Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3600, Frame 184T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.4-12.2/6.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.70
- Package Height: 15.70
- Package Weight: 66.05
Product info last updated on January 14, 2026 11:27am UTC
Category: Motors
