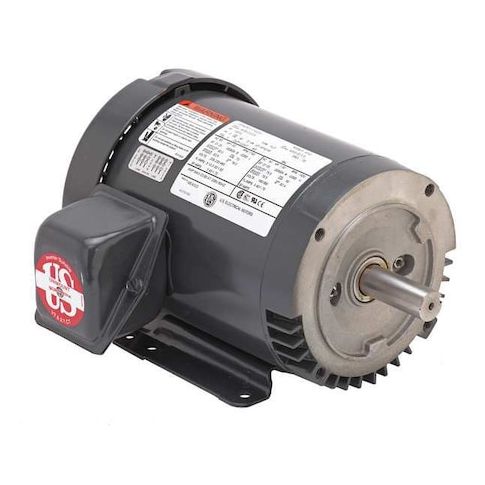

Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U30P2DC
Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 30 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. Its high efficiency rating of 93.6% reduces energy costs and minimizes environmental impact. The motor's totally enclosed fan cooled design and ball bearings ensure reliable operation in harsh conditions. With a nameplate RPM of 1800, it provides consistent performance and is suitable for continuous duty. Its compact 286TC frame and aluminum construction make it ideal for space-constrained environments, and its CW/CCW motor shaft rotation allows for flexible installation options.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable heat dissipation
- Ball motor bearings for smooth and quiet rotation
Top product applications:
- Pump applications such as water treatment, wastewater treatment, and chemical processing
- Conveyor systems in manufacturing and material handling facilities
- Fans and blowers in HVAC and industrial ventilation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1800, Frame 286TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 78.0-73.0/36.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 22.30
- Package Height: 20.50
- Package Weight: 296.00
Product info last updated on February 8, 2026 12:58pm UTC
Category: Motors
