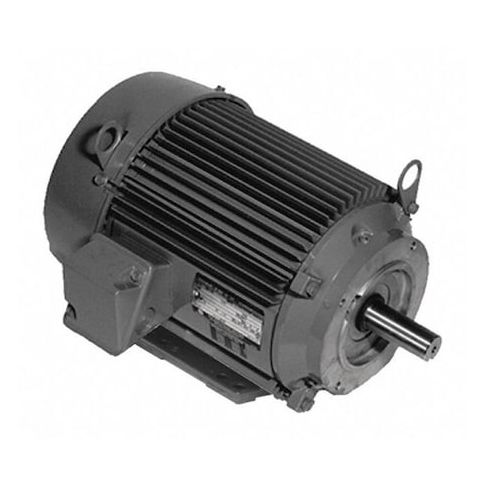

Three-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U3P2DK
Three-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure design ensures reliable operation in harsh environments, while its rigid base and C-face motor mounting type provide a secure and stable installation. With a high efficiency rating of 89.5% and a service factor of 1.25, this motor offers significant energy savings and increased productivity. Suitable for continuous duty, it's ideal for applications such as pumps, fans, and conveyor systems, and is available for immediate shipment with a one-day lead time.
Top product features:
- Three-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM from US Motors
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial machinery manufacturing
- Material handling equipment
- Pumping systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1800, Frame 182TCH, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.4-7.8/3.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 14.70
- Package Height: 15.00
- Package Weight: 62.00
Product info last updated on February 9, 2026 11:23am UTC
Category: Motors
