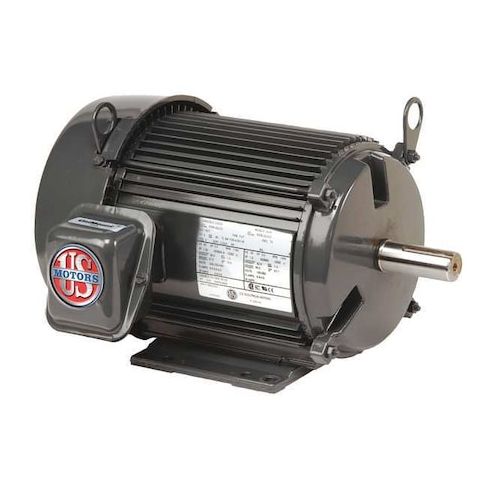

Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1800 Nameplate RPM MPN:U25P2D
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1800 Nameplate RPM
This 25 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. Its totally enclosed fan-cooled motor enclosure ensures reliable operation in harsh environments, while its rigid base motor mounting type provides stability and durability. With a high efficiency rating of 93.6 percent, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty at 1800 RPM, it's an ideal choice for applications such as conveyor systems, pumps, and fans. Its CE, CSA, and UL certifications ensure compliance with international safety standards.
Top product features:
- Three-phase operation for efficient power delivery
- Totally enclosed fan cooled motor enclosure for reduced maintenance and improved reliability
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pumps
- Automotive Manufacturing Equipment
- Food Processing Machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1800, Frame 284T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 59.0/29.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 20.60
- Package Weight: 277.00
Product info last updated on February 4, 2026 6:43am UTC
Category: Motors
