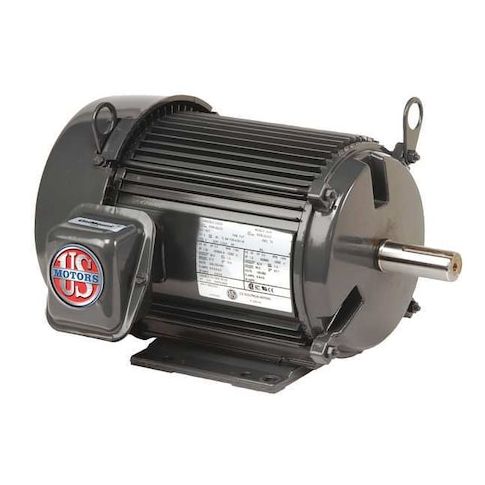

Three-Phase General Purpose Motor, 25 HP, 284T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U25P1D
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 3600, Frame 284T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 65.0-57.0/28.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.60
- Package Width: 22.40
- Package Height: 20.70
- Package Weight: 286.00
Product info last updated on February 14, 2026 8:08am UTC
Category: Motors
