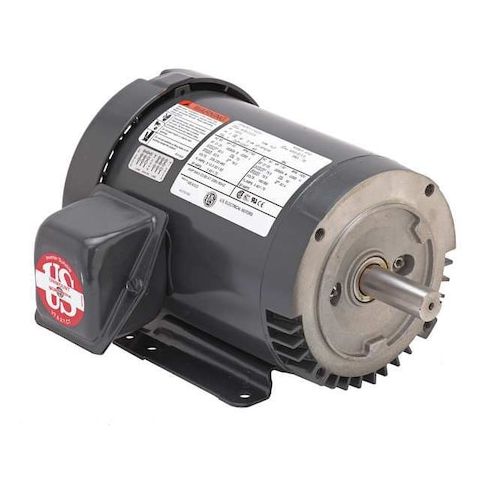

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM MPN:U5P3DC
Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM
This 5 HP three-phase general purpose motor from US Motors is designed for heavy-duty applications requiring high efficiency and reliability. Suitable for use in various industries such as manufacturing, oil and gas, and food processing, this motor operates at 1200 nameplate RPM and offers a high service factor of 1.25, ensuring extended motor life. With a rigid base and C-face mounting type, it provides stable and secure installation. Totally enclosed fan cooled design and ball bearings ensure efficient cooling and reduced maintenance. Ideal for continuous duty applications, this motor offers a high efficiency of 90.2% and operates at a maximum ambient temperature of 40 degrees C.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced heat and increased durability
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial pumping applications
- Conveyor systems
- Compressor drives
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1200, Frame 215TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 15.0-14.0/7.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.20
- Package Width: 16.40
- Package Height: 14.80
- Package Weight: 135.00
Product info last updated on February 8, 2026 5:07am UTC
Category: Motors
