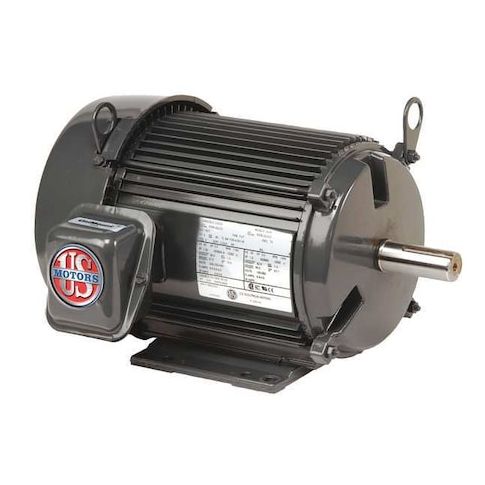

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U10P1D
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
This 10 HP three-phase general purpose motor from US Motors is a reliable and efficient solution for various industrial applications. Suitable for use in facilities with 208-230/460V AC voltage, it operates at 3600 nameplate RPM and features a totally enclosed fan cooled motor enclosure design for optimal performance and protection. With a high efficiency rating of 91 percent, this motor reduces energy consumption and increases productivity. Its rigid base mounting type and ball bearings ensure smooth and durable operation. Ideal for continuous duty applications, this motor is CE, CSA, and UL certified, making it a trusted choice for industrial settings.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty, 3001-3600 Nameplate RPM
Top product applications:
- Industrial conveyor systems
- Pumping stations and water treatment plants
- Manufacturing assembly lines
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3600, Frame 215T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 26.4-23.5/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.70
- Package Height: 14.70
- Package Weight: 120.00
Product info last updated on March 13, 2026 5:07pm UTC
Category: Motors
