Three-Phase General Purpose Motor, 5 HP, 184TCH Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U5P1DK
Three-Phase General Purpose Motor, 5 HP, 184TCH Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM

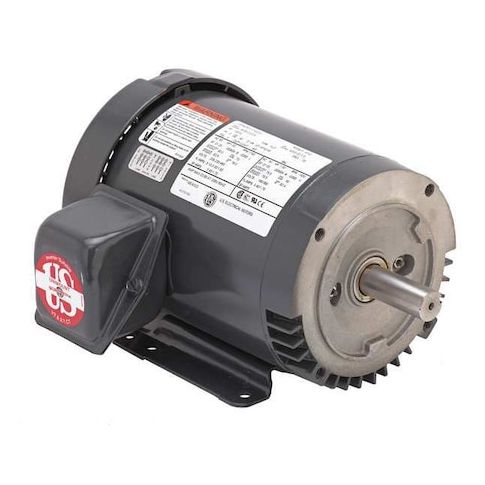

The US Motors 5 HP Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in industrial settings, it features a totally enclosed fan cooled motor enclosure design, aluminum frame, and ball bearings for long-lasting performance. With a nameplate RPM of 3600 and a service factor of 1.25, this motor can handle continuous duty and withstand temperatures up to 40 degrees C. Ideal for use in manufacturing, material handling, and other heavy-duty applications, this motor offers high efficiency and reliability, making it a valuable addition to any operation.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and protected environment for the motor.
- Ball Motor Bearings ensure smooth and reliable operation of the motor.
- Rigid Base and C-Face Motor Mounting Type provide a secure and stable mounting system for the motor.
Top product applications:
- Pump and Fan Applications
- Industrial Conveyors and Material Handling Systems
- Power Generation and Distribution Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3600, Frame 184TCH, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.4-12.2/6.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.40
- Package Height: 15.00
- Package Weight: 68.00
Product info last updated on February 17, 2026 2:30am UTC
Category: Motors
