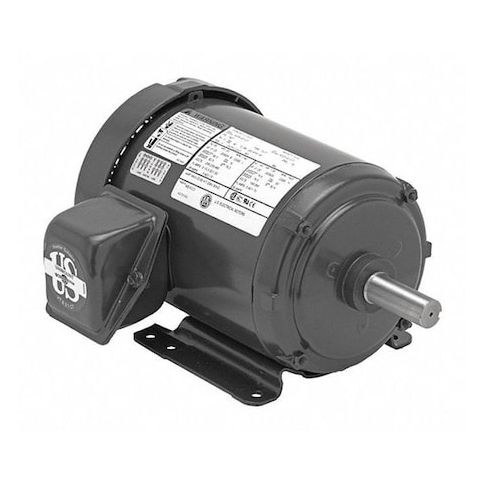

Three-Phase General Purpose Motor, 1 HP, 145T Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM MPN:U1P3D
Three-Phase General Purpose Motor, 1 HP, 145T Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM
This 1 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, commercial equipment, and heavy-duty machinery. With a high efficiency rating of 82.5% and a robust totally enclosed fan cooled design, it provides reliable performance in demanding environments. The motor's rigid base mounting and ball bearings ensure smooth operation, while its steel frame and Class F insulation provide durability and protection. Suitable for continuous duty applications, this motor is ideal for use in manufacturing, material handling, and other industries where high torque and reliability are essential.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in various environments
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1200, Frame 145T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.6-3.5/1.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.60
- Package Height: 9.20
- Package Weight: 43.45
Product info last updated on April 3, 2026 7:01am UTC
Category: Motors
