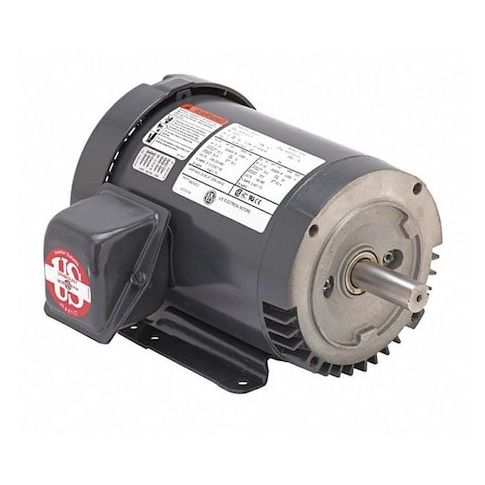

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U2P2DC

• The U.S. MOTORS - U2P2DC is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It effectively converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors such as manufacturing lines and HVAC systems.

  Key Features of the U.S. MOTORS - U2P2DC General Purpose Motor:


  • CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: Continuous duty cycle, which is a measure of the motor's potential operation time in an industrial setting.
  • Frame: 145TC frame size conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Draws a maximum current of 5.7/2.8 A when operating at full capacity, which helps determine power supply requirements.
  • Green Certification or Other Recognition: NEMA Premium Rated acknowledging that this motor meets certain environmental and energy efficiency standards
  • Horsepower (HP): With an output of 2 HP, it is suitable for use in various industrial applications
  • Nominal Efficiency: Standard measure that indicates the conversion rate from electrical to mechanical power under normal operating conditions
  • this model has a nominal efficiency rate of 86.5%
