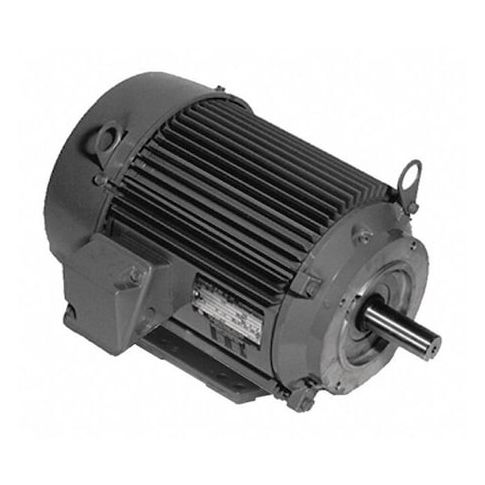

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U20P2DC
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 20 HP three-phase general purpose motor is designed for demanding industrial applications, offering high efficiency and reliable performance. With a totally enclosed fan cooled motor enclosure, it provides protection from harsh environments and ensures optimal operation. Suitable for continuous duty, this motor is ideal for use in manufacturing, material handling, and other heavy-duty industrial settings. Its rigid base and C-face mounting type make it easy to install and integrate into existing systems. With a high service factor and ball bearings, this motor provides long-lasting reliability and minimizes downtime, making it an excellent choice for industrial applications that require high performance and efficiency.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial conveyor systems
- Material handling equipment
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1800, Frame 256TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 53.0-47.0/23.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 23.00
- Package Weight: 238.00
Product info last updated on January 23, 2026 9:46am UTC
Category: Motors
