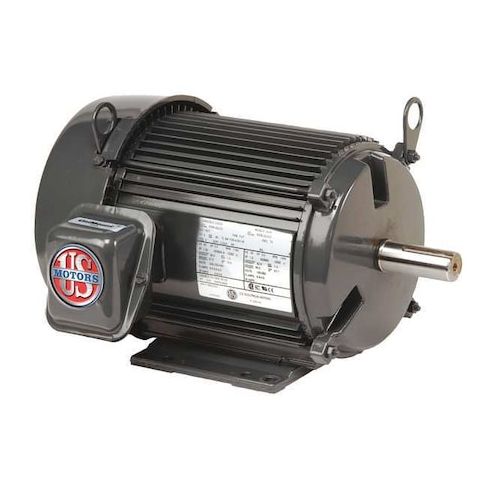

Three-Phase General Purpose Motor, 25 HP, 284TS Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U25P2DS
Three-Phase General Purpose Motor, 25 HP, 284TS Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 25 HP three-phase general purpose motor is designed for demanding industrial applications, offering efficient operation and reliable performance. With a nameplate RPM of 1800 and a voltage range of 208-230/460V AC, this motor is suitable for a wide range of uses, including manufacturing, processing, and material handling. Its totally enclosed fan cooled design and rigid base mounting ensure smooth operation in harsh environments, while its high efficiency rating of 93.6% reduces energy costs and minimizes downtime. Ideal for continuous duty applications, this motor is a reliable choice for industries requiring high-performance motors.
Top product features:
- Three-Phase Design for Efficient Power Delivery
- Totally Enclosed Fan Cooled Motor Enclosure for Reduced Maintenance and Increased Reliability
- Ball Motor Bearings for Smooth Operation and Extended Motor Life
Top product applications:
- Industrial Pumping Systems
- Power Generation and Distribution Equipment
- Material Handling and Conveying Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1800, Frame 284TS, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 65.0-59.0/29.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.60
- Package Width: 22.50
- Package Height: 23.00
- Package Weight: 280.00
Product info last updated on February 2, 2026 2:41pm UTC
Category: Motors
