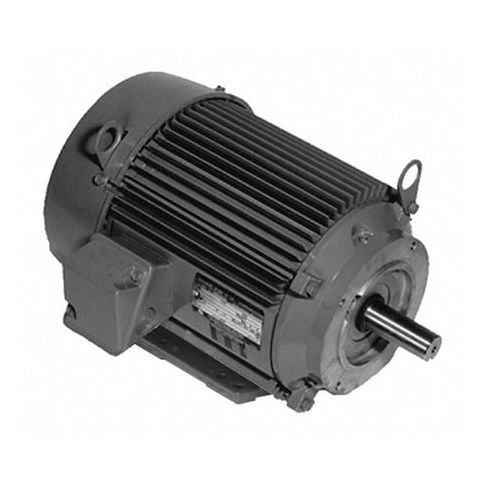

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U3P2DC
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 3 HP Three-Phase General Purpose Motor is designed for a wide range of applications, including industrial processes, manufacturing, and heavy-duty equipment operation. Its totally enclosed fan cooled design ensures reliable performance in harsh environments, while its aluminum frame and ball bearings provide long-lasting durability. With a high efficiency rating of 89.5%, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty operation, it's ideal for applications such as pumps, fans, and conveyor systems, where consistent power is required. Its compact size and rigid base make it easy to integrate into existing systems.
Top product features:
- Three-phase operation for efficient power transmission
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications for water treatment and chemical processing
- Conveyor systems for material handling and manufacturing
- Fans and blowers for HVAC and industrial ventilation
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1800, Frame 182TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.4-7.8/3.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 14.70
- Package Height: 14.90
- Package Weight: 62.95
Product info last updated on January 16, 2026 10:23am UTC
Category: Motors
