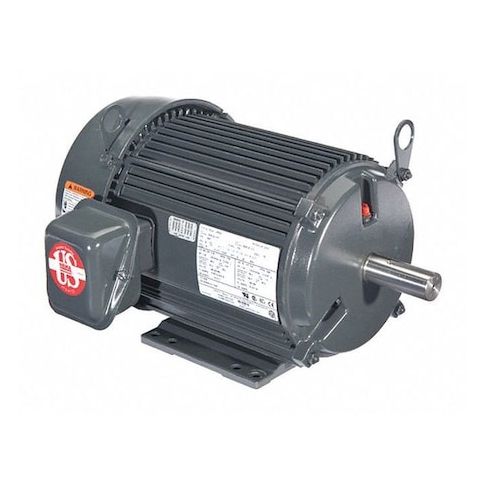

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U3P1D
Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3600, Frame 182T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.4-7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.60
- Package Height: 15.00
- Package Weight: 55.60
Product info last updated on February 19, 2026 6:24pm UTC
Category: Motors
