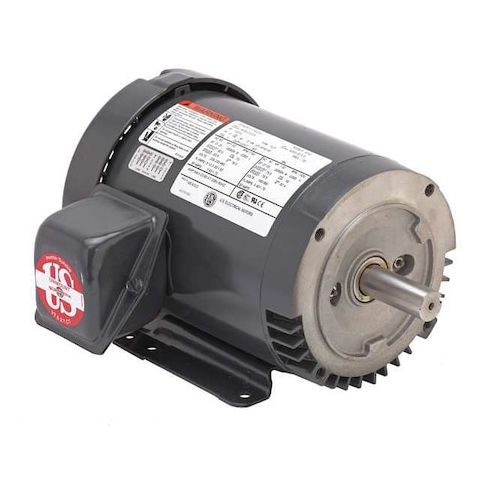

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U5P1DC
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
This 5 HP three-phase general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled design ensures reliable operation in harsh environments, while its rigid base and C-face motor mounting type provide stable and secure installation. With a maximum ambient temperature of 40 degrees C and a service factor of 1.25, this motor can handle demanding tasks with ease. Suitable for applications such as pumps, fans, and conveyor systems, it offers high efficiency, long-lasting performance, and easy maintenance, making it an ideal choice for industries requiring reliable and efficient power.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable cooling and reduced maintenance
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and pumping systems
- Fans and blowers
- Conveyors and material handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3600, Frame 184TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.4-12.2/6.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.40
- Package Height: 14.90
- Package Weight: 68.10
Product info last updated on February 9, 2026 12:12am UTC
Category: Motors
