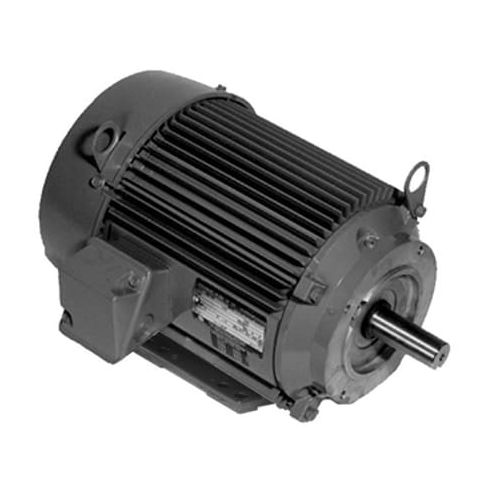

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM MPN:U5P2EC
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
This 5 HP three-phase general purpose motor is designed for heavy-duty applications requiring reliable and efficient operation. Suitable for use in industrial settings, it features a totally enclosed fan cooled motor enclosure and rigid base for added stability. With a nameplate RPM of 1800, this motor is ideal for applications where high speed and continuous duty are required. Its high efficiency of 90.2% reduces energy costs and minimizes environmental impact. Applications include manufacturing, material handling, and HVAC systems, where its high torque and power output can handle demanding tasks.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable cooling and reduced maintenance
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications for chemical, oil, and water treatment plants
- Conveyor systems for mining and manufacturing facilities
- Fans and blowers for HVAC and industrial ventilation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1800, Frame 184TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.6-12.3/6.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 83.00
Product info last updated on February 16, 2026 9:16pm UTC
Category: Motors
