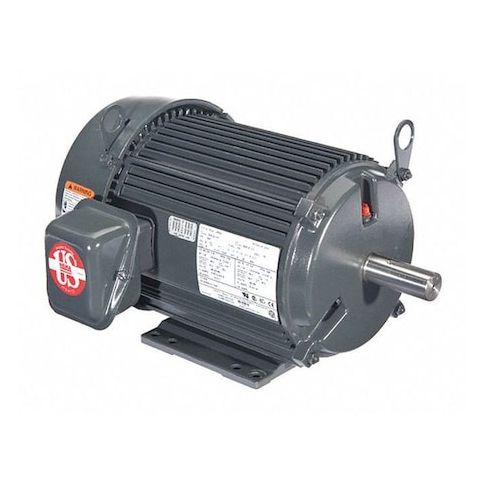

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1800 Nameplate RPM MPN:U20P2D
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1800 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1800, Frame 256T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 47.0/23.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.30
- Package Width: 22.50
- Package Height: 20.60
- Package Weight: 239.00
Product info last updated on March 20, 2026 1:16am UTC
Category: Motors
