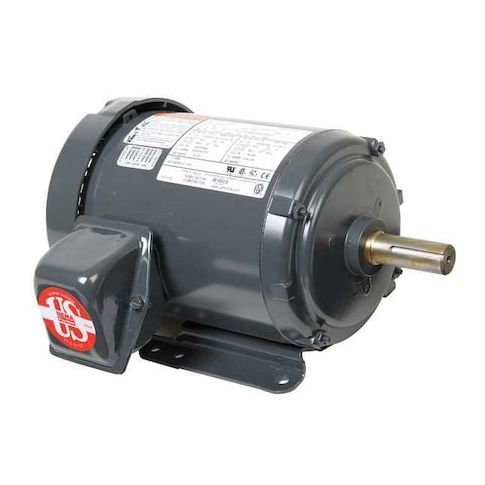

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM MPN:U2P1D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4526627
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM
This 2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it ideal for applications requiring consistent power output. Suitable for use in facilities with 208-230/460V AC power, it is also CE, CSA, and UL certified for added assurance. Its compact design and rigid base motor mounting type make it easy to integrate into existing systems, making it a versatile and reliable choice for various industrial applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial Pump Applications
- Machine Tool Applications
- Conveyor System Applications
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3600, Frame 145T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.4-4.9/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.60
- Package Height: 9.20
- Package Weight: 38.45
Product info last updated on February 28, 2026 4:43am UTC
Category: Motors
