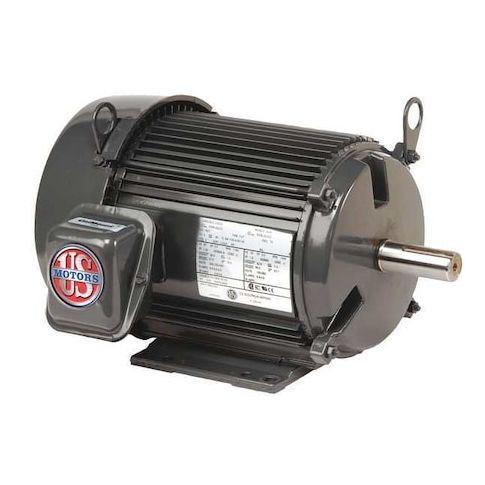

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1800 Nameplate RPM MPN:U15P2D
Three-Phase General Purpose Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1800 Nameplate RPM
This 15 HP three-phase general purpose motor is designed for a wide range of applications, including manufacturing, food processing, and material handling. Its totally enclosed fan cooled motor enclosure design ensures reliable operation in harsh environments, while its rigid base motor mounting type provides stability and reduces vibration. With a nameplate RPM of 1800 and a service factor of 1.25, this motor is suitable for continuous duty applications. Its high efficiency and durable construction make it an ideal choice for industries that require high performance and low maintenance. Suitable for use in a variety of settings, including industrial and commercial facilities.
Top product features:
- Three-Phase AC Voltage Compatibility: 230/460V
- Totally Enclosed Fan Cooled Motor Enclosure Design for Dust and Moisture Protection
- 1800 Nameplate RPM for High-Speed Applications
Top product applications:
- Pump applications such as water, chemical, and oil pumps
- Conveyor applications including belt and chain conveyors
- Fans and blowers for industrial ventilation and air circulation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1800, Frame 254T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 37.0/18.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.20
- Package Width: 22.20
- Package Height: 20.50
- Package Weight: 289.00
Product info last updated on February 3, 2026 5:59am UTC
Category: Motors
