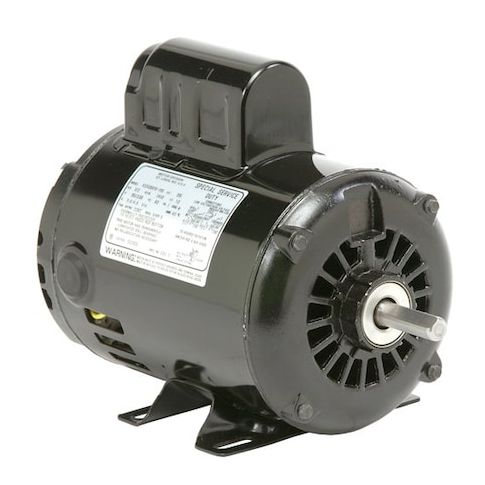

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182 Frame MPN:D3C1P18
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405224
Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182 Frame
This 3 hp capacitor-start/run motor is a versatile and reliable choice for a wide range of applications. Suitable for use in 115/230V AC environments, it offers a high level of efficiency and durability. The motor's continuous duty cycle and open drip-proof design make it ideal for applications where reliability and maintenance are crucial. Its compact 182 frame size makes it easy to integrate into existing systems. From industrial equipment to commercial machinery, this motor is a great solution for applications requiring a high level of performance and reliability. Its long lifespan and low maintenance requirements make it a cost-effective choice.
Top product features:
- Capacitor-start/run design provides efficient power delivery
- Single-phase operation allows for simple installation and reduced complexity
- 1800 RPM motor speed meets various application requirements
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Air conditioning and refrigeration equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,540 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 32.0/16.0 A, 182 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 81.00
Product info last updated on January 14, 2026 10:10am UTC
Category: Motors
