Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame MPN:1660
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405188

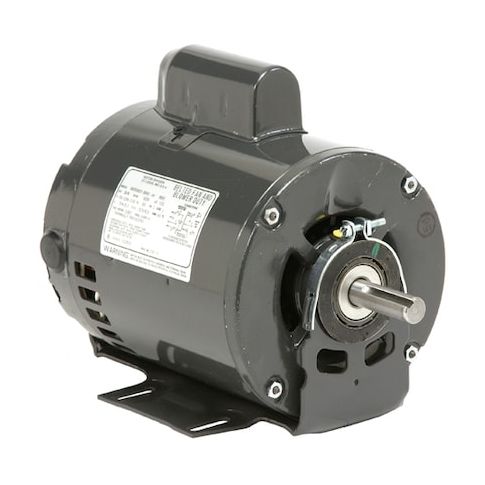

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame
This 3/4 hp capacitor-start/run general purpose motor is designed for a wide range of applications, including residential and commercial settings. With a single-phase motor design and 115/230V AC voltage, it provides reliable operation in various environments. The motor's 1,725 RPM nameplate speed and continuous duty cycle make it suitable for applications requiring consistent power. The open drip-proof design and CW/CCW shaft rotation offer flexibility in installation and mounting. Additionally, the motor's compact size and lightweight design make it easy to handle and install, reducing labor costs and increasing efficiency. It's ideal for use in HVAC, water pumps, and other industrial equipment.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Single-phase motor operation allows for simple installation and setup
- Open drip-proof enclosure design protects the motor from environmental hazards
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.6/5.8 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 28.00
Product info last updated on January 16, 2026 10:45am UTC
Category: Motors
