Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame MPN:T34C3JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405093

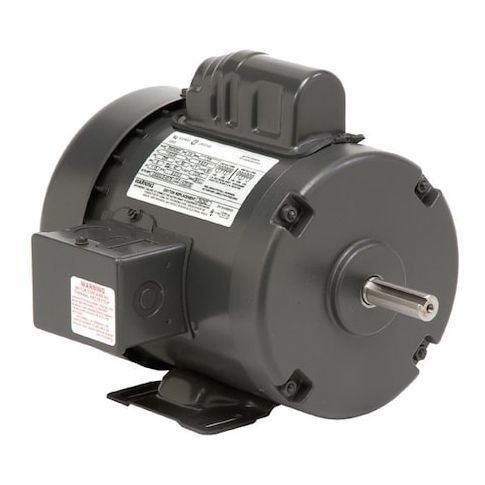

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame
This 3/4 hp Capacitor-Start General Purpose Motor from US Motors is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with temperatures up to 40°C, this motor is perfect for industrial settings, such as manufacturing facilities, warehouses, and commercial kitchens. With a continuous duty cycle and totally enclosed fan-cooled design, it provides consistent performance and long-lasting operation. The motor's single-phase design and capacitor-start technology make it easy to install and maintain, while its rigid base mounting type ensures secure and stable operation. Ideal for applications requiring high torque and speed.
Top product features:
- Totally Enclosed Fan Cooled design
- Continuous Duty Cycle capability
- Single Phase Motor Design with Capacitor-Start functionality
Top product applications:
- Pump applications for water, oil, or other fluids
- Fans for industrial ventilation systems
- Conveyor systems for material handling in manufacturing facilities
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.6/5.4-5.3 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 39.00
Product info last updated on March 6, 2026 9:25am UTC
Category: Motors
