Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame MPN:T2CM2JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404926

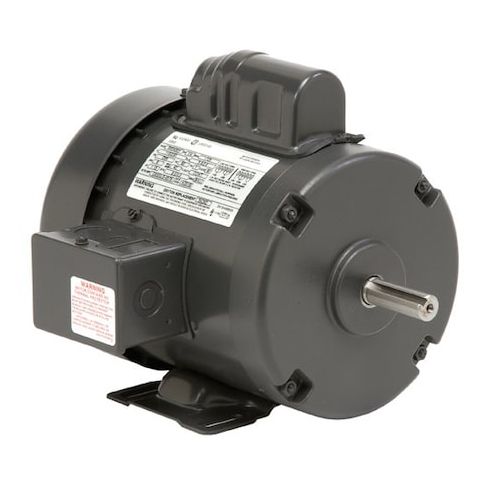

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame
This 2 hp general purpose motor from US Motors is designed for single-phase applications and features a capacitor-start design for efficient operation. Suitable for continuous duty cycles, it operates at 1,725 RPM and can be used at 115/230V AC or 208V. The motor is built with a 56H frame and is totally enclosed fan cooled for reliable performance in a variety of environments. Its rugged design and compact size make it ideal for use in industrial settings, such as manufacturing facilities, warehouses, and other commercial applications where a reliable and efficient motor is required.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Continuous Duty Cycle
- Manual Motor Thermal Protection
Top product applications:
- Pumps
- Air Compressors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.9/10.3-9.4 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 54.00
Product info last updated on February 5, 2026 8:51pm UTC
Category: Motors
