Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 145T Frame MPN:T2CM2J14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404908

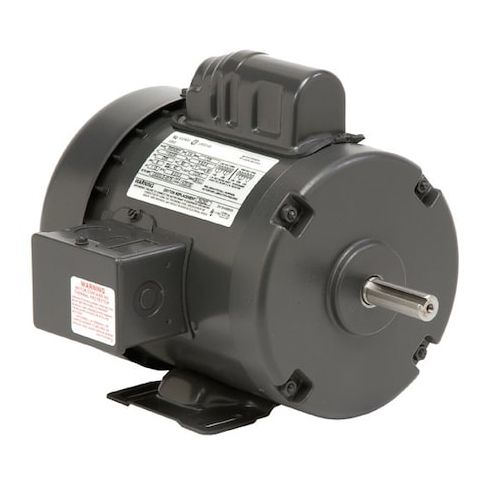

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 145T Frame
This 2-hp, single-phase, capacitor-start general purpose motor from US Motors is designed for a wide range of applications. Suitable for use in 115/230V AC environments, it features a 145T frame and operates at 1,725 RPM. The motor's totally enclosed fan-cooled design provides reliable performance in various temperatures, up to 40°C. It's ideal for applications requiring continuous duty cycles, such as in manufacturing, pumping, and conveyor systems. With a maximum ambient temperature of 40°C and a service factor of 1, this motor offers efficient and reliable operation in a variety of settings.
Top product features:
- Capacitor-start design for efficient starting and reduced wear on the motor
- Totally enclosed fan-cooled design for improved cooling and reduced maintenance
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.9/10.3-9.4 A, 145T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 54.00
Product info last updated on February 22, 2026 12:33am UTC
Category: Motors
