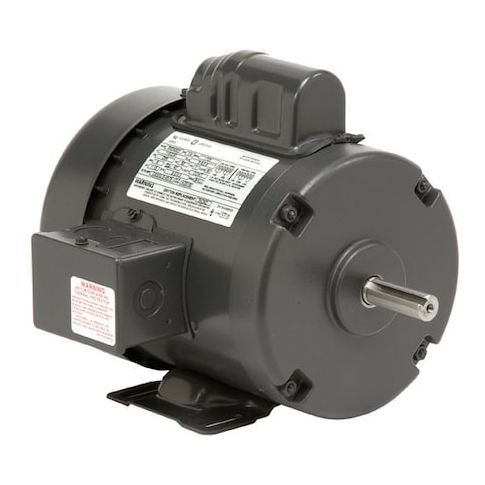

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:T1CM1J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404813
Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1 hp capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Suitable for 115/208-230V AC voltage, it operates at 3,450 RPM and has a service factor of 1.15. The motor is totally enclosed fan cooled, providing reliable operation in harsh environments. Its compact 56 frame design makes it easy to install and maintain. Ideal for continuous duty cycles, this motor is perfect for applications such as conveyor systems, pumps, and fans in industries like manufacturing, food processing, and HVAC. Its high efficiency and durability make it a reliable choice for demanding tasks.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor protection and reduced noise
- Continuous Duty Cycle for uninterrupted operation
- Motor Thermal Protection for automatic shutdown in case of overheating
Top product applications:
- Industrial Conveyors
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/6.9-6.8 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 10.80
- Package Height: 10.80
- Package Weight: 27.85
Product info last updated on January 14, 2026 2:35pm UTC
Category: Motors
