Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:T1C2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404786
Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame

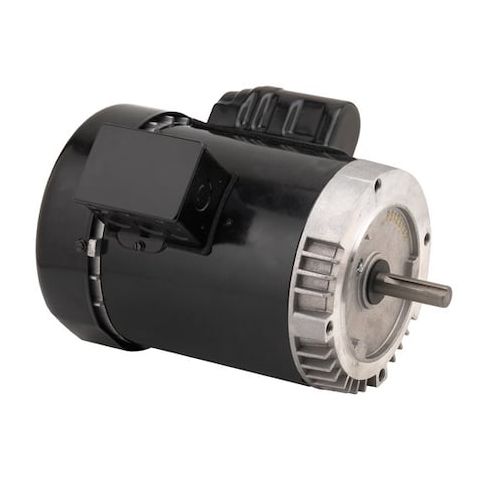

This 1 hp capacitor-start general purpose motor from US Motors is designed for a wide range of applications requiring single-phase power. Suitable for use at 115/208-230V AC, it offers a reliable and efficient solution for various industries. The motor's 1,725 RPM and 14.0/6.9-7.0 A full load amps make it ideal for applications such as pumps, fans, and conveyor systems. Its totally enclosed fan-cooled design and 40°C maximum ambient temperature ensure optimal performance in various environments. With a service factor of 1.15, this motor provides a reliable and long-lasting solution for your industrial needs.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Continuous duty cycle for uninterrupted operation
- Single Phase, Motor Design Capacitor-Start for reliable starting and running capabilities
Top product applications:
- Pumps
- Air Compressors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.30
- Package Height: 12.10
- Package Weight: 32.90
Product info last updated on January 18, 2026 12:37am UTC
Category: Motors
