Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 143TC Frame MPN:T1C2J14C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404759

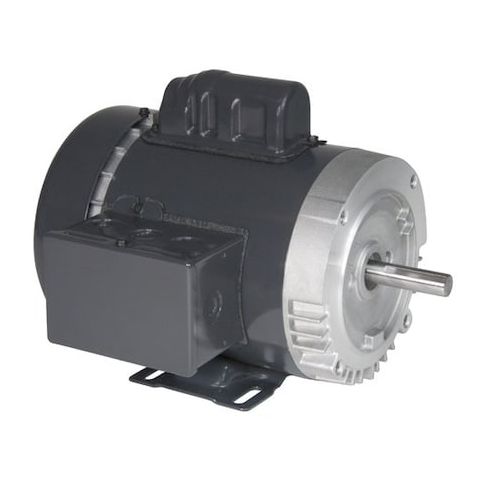

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 143TC Frame
This 1 hp Capacitor-Start General Purpose Motor from US Motors is a reliable and efficient choice for a wide range of applications. Suitable for single-phase use, this motor operates at 1,725 RPM and can handle continuous duty cycles. With a totally enclosed fan-cooled design, it provides protection from dust and moisture, making it ideal for use in harsh environments. Its compact 143TC frame makes it easy to integrate into existing systems. Perfect for use in manufacturing, pumping, and HVAC applications, this motor offers a high service factor and long lifespan, ensuring reliable performance and reduced maintenance costs.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Keyed motor shaft for secure and precise mounting
- Continuous duty cycle for sustained operation without overheating
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 143TC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 10, 2026 12:00pm UTC
Category: Motors
