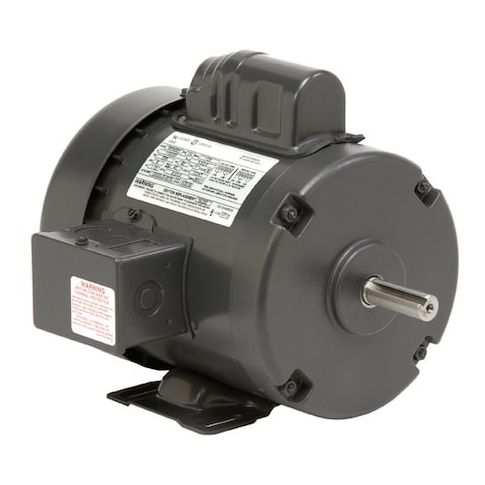

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame MPN:T1C3JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404673
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame
This 1 hp capacitor-start motor from US Motors is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, it provides continuous operation at a maximum ambient temperature of 40 degrees C. The motor's totally enclosed fan-cooled design ensures optimal performance and protection in harsh conditions. Ideal for applications such as industrial machinery, pumps, and fans, this motor offers a high service factor of 1.15, making it a cost-effective choice for long-term use. Its compact 56H frame and CW/CCW rotation make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor protection and reduced maintenance
- Capacitor-Start motor design for efficient and reliable operation
- Continuous Duty Cycle capability for long-lasting performance in demanding applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.6/6.6-6.3 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 44.00
Product info last updated on February 2, 2026 11:35am UTC
Category: Motors
