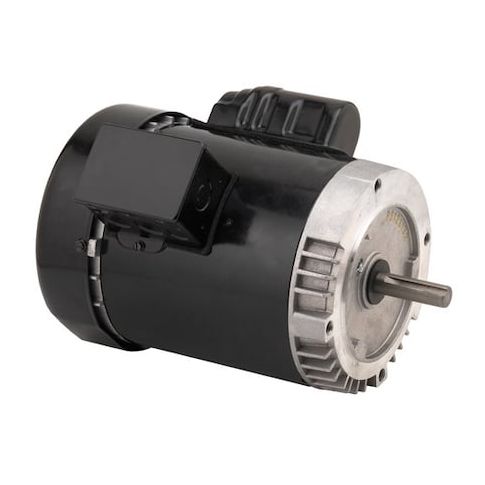

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:T1CA2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404585
Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1 hp capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. With its 115/208-230V AC voltage rating, it can be used in various settings where a single-phase motor is required. The motor's capacitor-start design provides efficient operation and long motor life, while its totally enclosed fan-cooled design ensures reliable performance in harsh environments. Suitable for continuous duty cycles, this motor is ideal for applications such as pumps, fans, and conveyor systems, where high reliability and efficiency are essential. Its compact 56C frame makes it easy to install and maintain.
Top product features:
- Totally Enclosed Fan Cooled design for reliable operation in harsh environments
- Single Phase motor design with Capacitor-Start for efficient power usage
- Keyed motor shaft for secure and precise mounting of accessories
Top product applications:
- Industrial Conveyors
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.10
- Package Height: 11.80
- Package Weight: 33.20
Product info last updated on January 16, 2026 10:27am UTC
Category: Motors
