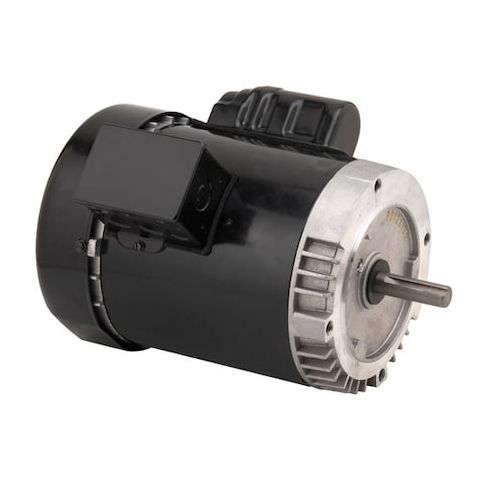

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:T32CM2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404524
Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame
This 1.5 hp capacitor-start general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 115/230V AC voltage make it suitable for various environments. The motor's totally enclosed fan-cooled design provides reliable operation and extends its lifespan. With a nameplate RPM of 1,725 and a continuous duty cycle, it can handle demanding tasks. Its compact 56C frame and rigid base make it easy to install and mount. Ideal for use in factories, warehouses, and other facilities, this motor offers efficient and reliable performance.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and protected operating environment for the motor.
- Single Phase, Capacitor-Start motor design allows for efficient and reliable operation at a wide range of voltages.
- Continuous Duty Cycle capability enables the motor to operate for extended periods without overheating or failing.
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.4/8-7.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 31.00
Product info last updated on February 2, 2026 9:11am UTC
Category: Motors
