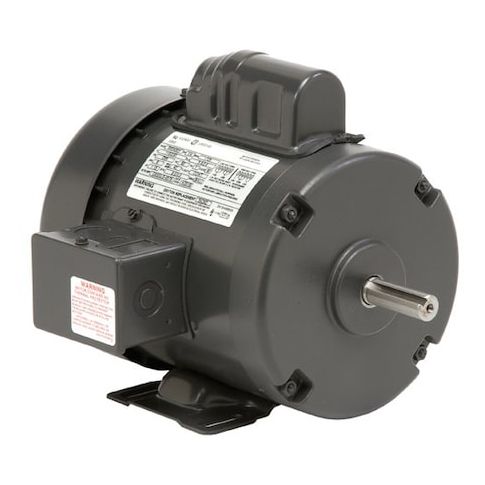

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:T14CM2J4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404409
Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 48 Frame
This 1/4 HP capacitor-start general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 115/208-230V AC voltage make it suitable for various settings. With a nameplate RPM of 1,725 and a continuous duty cycle, this motor provides reliable performance in demanding environments. Its totally enclosed fan-cooled design and rigid base mounting ensure efficient cooling and stability. Ideal for use in factories, warehouses, and other industrial facilities, this motor offers a cost-effective solution for powering machinery and equipment.
Top product features:
- Totally Enclosed Fan Cooled motor design provides a safe and durable operation in harsh environments.
- The motor is designed for continuous duty cycle operation, allowing for extended periods of use.
- The capacitor-start design enables efficient and reliable operation of the motor.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/2.9-3.3 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 10.13
- Package Height: 10.63
- Package Weight: 22.00
