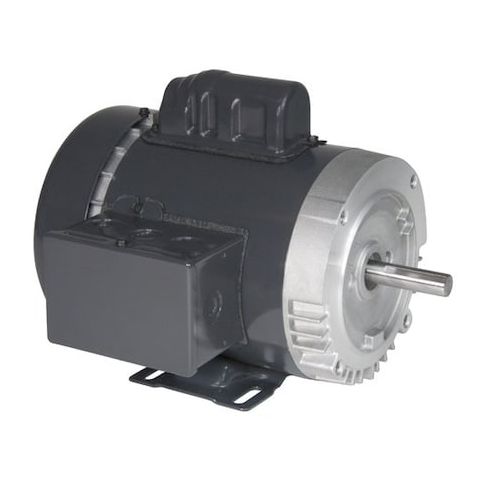

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:T14C2JC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404269
Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/4 hp capacitor-start general purpose motor is a reliable and efficient solution for a variety of applications, including industrial equipment, HVAC systems, and commercial machinery. With a nameplate RPM of 1,725 and a continuous duty cycle, it can handle demanding tasks with ease. The motor's totally enclosed fan-cooled design and keyed shaft provide added protection and durability, while its 56C frame and 60 Hz operation ensure compatibility with a wide range of systems. Suitable for use in 115/208-230V AC environments, this motor is a versatile and cost-effective choice for any application requiring a high-torque output.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection and durability
- Keyed motor shaft for secure and precise mounting
- Continuous duty cycle capability for uninterrupted operation
Top product applications:
- Industrial Automation
- Pump and Fan Applications
- Conveyor Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.5/2.8-3.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 9.63
- Package Height: 10.13
- Package Weight: 22.00
Product info last updated on January 15, 2026 1:28pm UTC
Category: Motors
