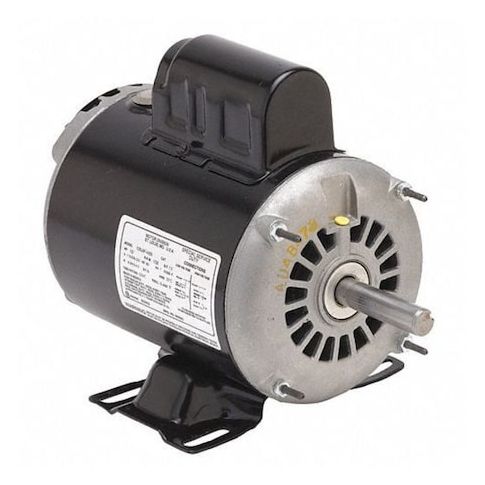

Split-Phase General Purpose Motor, 1/3 hp HP, 115V AC Voltage, 48 Frame, 1, 725 RPM Nameplate RPM MPN:D13B2N4A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404208
Split-Phase General Purpose Motor, 1/3 hp HP, 115V AC Voltage, 48 Frame, 1, 725 RPM Nameplate RPM
This 1/3 horsepower, 115V AC, split-phase general purpose motor is designed for a wide range of applications, including industrial processes, commercial equipment, and residential appliances. Its continuous duty cycle and open drip-proof enclosure make it suitable for use in harsh environments. With a nameplate RPM of 1,725, this motor provides reliable and efficient operation. Its compact size and lightweight design make it easy to install and maintain. Ideal for use in applications such as pumps, fans, and blowers, this motor offers a cost-effective solution for a variety of industrial and commercial needs.
Top product features:
- Split-Phase design for general purpose applications
- Operates at 1,725 RPM
- Open Drip Proof motor enclosure design for protection in harsh environments
Top product applications:
- Pumps and water circulation systems
- Fans and ventilation systems
- Conveyors and material handling equipment
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.8 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 9.13
- Package Height: 9.63
- Package Weight: 16.00
Product info last updated on February 12, 2026 1:27am UTC
Category: Motors
