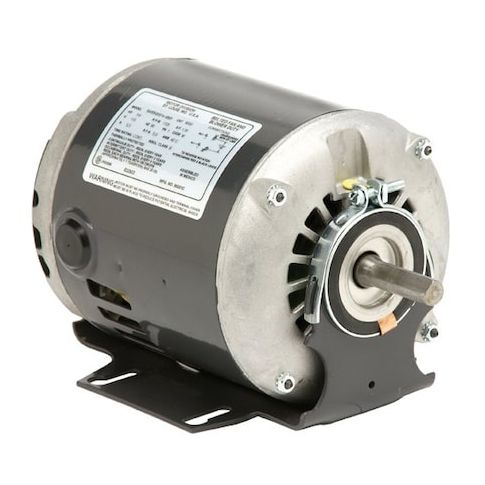

Split-Phase General Purpose Motor, 1/2 hp HP, 115V AC Voltage, 56Z Frame, 1, 725 RPM Nameplate RPM MPN:D12B2NZA9
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G4403989
Split-Phase General Purpose Motor, 1/2 hp HP, 115V AC Voltage, 56Z Frame, 1, 725 RPM Nameplate RPM
This 1/2 hp split-phase general purpose motor is designed for a wide range of applications, including industrial, commercial, and residential use. With a nameplate RPM of 1,725 and a 56Z frame, it offers reliable and efficient performance in various settings. Suitable for use at 115V AC voltage, it is ideal for applications such as conveyor systems, pumps, and fans. Its compact design and open drip-proof enclosure make it easy to integrate into existing systems. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor is built to withstand demanding conditions and provide continuous duty cycle operation.
Top product features:
- Split-Phase motor design for general purpose applications
- Operates at 1,725 RPM
- Open Drip Proof motor enclosure design for protection against dripping water and other contaminants
Top product applications:
- Air Compressor
- Pump
- Conveyor System
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.9 A, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 16.00
Product info last updated on March 2, 2026 8:41am UTC
Category: Motors
