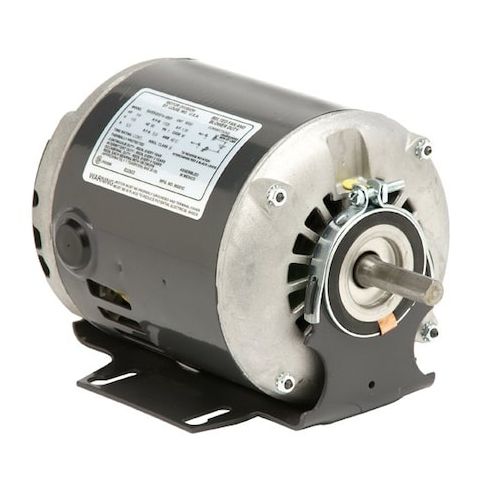

Split-Phase General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame, 1, 140 RPM Nameplate RPM MPN:D13B3P9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4403833
Split-Phase General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame, 1, 140 RPM Nameplate RPM
This 1/3 hp split-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design makes it easy to install and operate, while its 56 frame size provides a compact and efficient design. With a nameplate RPM of 1,140 and a continuous duty cycle, this motor is ideal for applications that require high torque and low speed. Its open drip-proof enclosure and CW/CCW shaft rotation make it suitable for use in a variety of environments, including those with high humidity or exposure to dust and debris.
Top product features:
- Split-Phase design for efficient operation
- Continuous duty cycle for reliable performance
- Open Drip Proof motor enclosure for protection against environmental contaminants
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.5/3.8 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.90
- Package Width: 8.20
- Package Height: 8.10
- Package Weight: 24.10
Product info last updated on January 14, 2026 3:09pm UTC
Category: Motors
