Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:T12CA2J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4403797

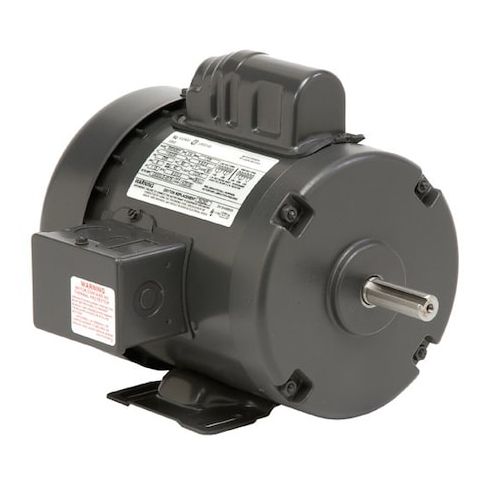

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
The US Motors Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, this motor delivers 1/2 hp of power at 1,725 RPM, making it ideal for industrial and commercial settings. Its totally enclosed fan-cooled design ensures optimal performance in temperatures up to 40°C, while its continuous duty cycle and motor thermal protection guarantee reliable operation. Perfect for applications such as fans, pumps, and conveyor systems, this motor offers a durable and cost-effective solution for businesses looking to streamline their operations.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments.
- Motor thermal protection automatically shuts off the motor to prevent overheating and damage.
- Capacitor-start design allows for efficient and reliable operation with a single phase power supply.
Top product applications:
- Industrial Automation
- Water Pumps
- Fans and Blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.0/4.3-4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 12.10
- Package Height: 12.20
- Package Weight: 24.80
Product info last updated on January 16, 2026 8:57am UTC
Category: Motors
