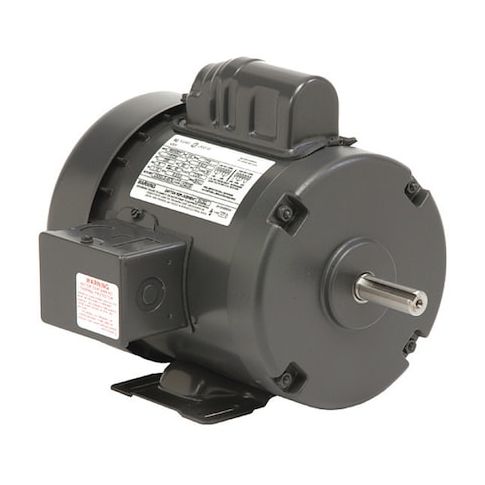

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:T12C2J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4403788
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1/2 hp capacitor-start general purpose motor is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC environments, it offers a nameplate RPM of 1,725 and a continuous duty cycle. The motor's totally enclosed fan-cooled design ensures optimal performance in a wide range of temperatures, up to 40 degrees C. Its rigid base mounting type and CW/CCW rotation make it easy to integrate into existing systems. Ideal for use in commercial and industrial settings, this motor is a cost-effective and dependable choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Continuous Duty Cycle capability for reliable operation in demanding applications
- 56 Frame size for compact installation and reduced space requirements
Top product applications:
- General purpose applications such as residential laundry, water pumps, and fans.
- Industrial applications such as conveyors, mixers, and blowers.
- Pump applications such as irrigation, chemical, and fuel pumps.
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.0/4.3-4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.50
- Package Height: 11.90
- Package Weight: 24.20
Product info last updated on February 5, 2026 12:49pm UTC
Category: Motors
