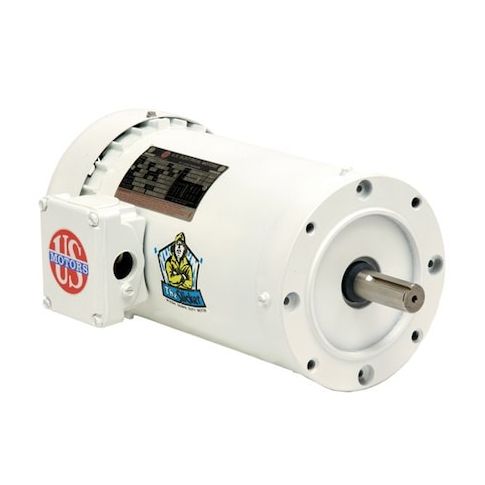

WashdownMotor, 3hp, 3600RPM, 208-230/460VAC MPN:WD3P1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4339355
WashdownMotor, 3hp, 3600RPM, 208-230/460VAC
This 3hp, 3600RPM washdown motor from US Motors is designed for heavy-duty applications in harsh environments. Suitable for use at 208V, it features a totally enclosed fan-cooled design and a continuous duty cycle, making it ideal for applications such as food processing, pharmaceutical manufacturing, and chemical plants. The motor's high service factor and Class F insulation ensure reliable operation in high-temperature environments up to 40°C. With a compact 56C frame and C-face mounting, it's easy to integrate into existing systems. Perfect for applications requiring high performance and durability, this motor meets the demands of the most challenging washdown environments.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan-cooled design for reliable performance in harsh environments
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Chemical Processing
- Water Treatment Plants
- Food Processing
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 7.9-6.7/3.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 85 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on January 14, 2026 12:16pm UTC
Category: Motors
