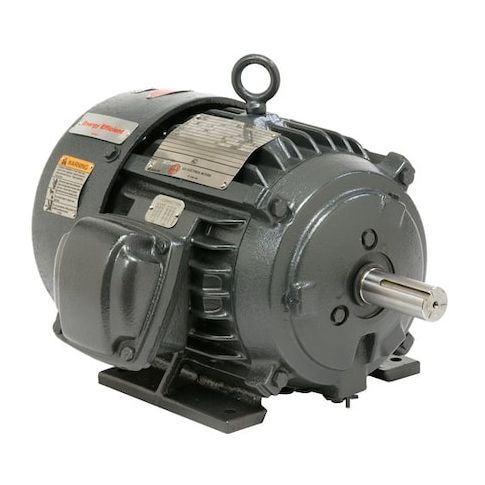

3-Phase Hazardous Location Motor, 20 HP, 286 Frame, 230/460V AC Voltage, 1, 180 Nameplate RPM MPN:X20P3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642345
3-Phase Hazardous Location Motor, 20 HP, 286 Frame, 230/460V AC Voltage, 1, 180 Nameplate RPM
This 20 HP 3-Phase Hazardous Location Motor is designed for use in environments where safety is paramount, meeting Class I, Class II, and Temp. Code T3C standards. The totally enclosed fan-cooled motor operates at 1,180 RPM, providing efficient and reliable performance in continuous duty cycles. Its 286T frame and 230/460V AC voltage make it suitable for a variety of applications, including industrial processes, oil and gas operations, and chemical plants. The motor's high service factor and thermal protection ensure extended lifespan and reduced maintenance, making it an ideal choice for demanding hazardous location environments.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operating environment.
- Three-Phase design enables the motor to handle heavy loads and provide reliable power.
- Continuous Duty Cycle allows the motor to operate for extended periods without interruption.
Top product applications:
- Explosion-proof pumps in oil refineries
- Chemical processing plants with high-risk areas
- Offshore drilling platforms
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 49.0/24.4 A, 286T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 458.00
Product info last updated on March 22, 2026 6:18am UTC
Category: Motors
