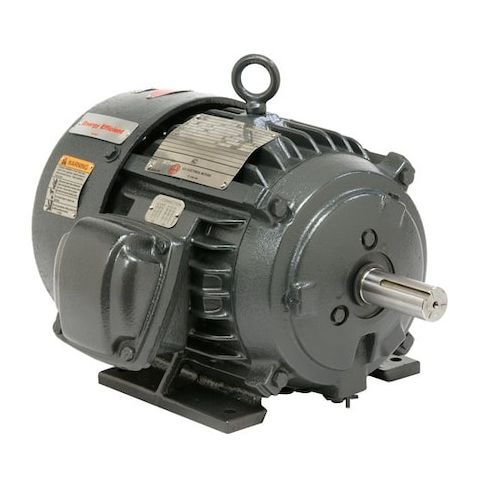

3-Phase Hazardous Location Motor, 30 HP, 286 Frame, 230/460V AC Voltage, 3, 560 Nameplate RPM MPN:YC30P1BS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642178
3-Phase Hazardous Location Motor, 30 HP, 286 Frame, 230/460V AC Voltage, 3, 560 Nameplate RPM
This 3-Phase Hazardous Location Motor is designed for use in hazardous environments, meeting Class I, Class II, Temp. Code T2B standards. With a 30 HP rating and 3,560 RPM nameplate speed, it's suitable for a variety of applications, including industrial processes and equipment in areas with explosive or flammable gases, dust, or fibers. The motor's totally enclosed fan-cooled design and continuous duty cycle ensure reliable operation in hot temperatures up to 40°C. Its compact 286T frame makes it ideal for space-constrained installations, providing a safe and efficient solution for hazardous location applications.
Top product features:
- Three-phase operation for power distribution and efficiency
- Totally Enclosed Fan Cooled design for reliable operation in harsh environments
- Continuous duty cycle for uninterrupted operation in demanding applications
Top product applications:
- Chemical Processing Plants
- Oil Refineries
- Petrochemical Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 3,560 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 69.0/34.0 A, 286T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 460.00
Product info last updated on April 11, 2026 9:01am UTC
Category: Motors
