3-Phase Hazardous Location Motor, 20 HP, 256 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:X20P2B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642038

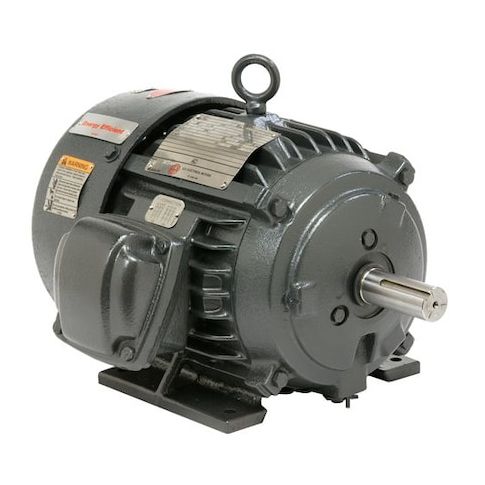

3-Phase Hazardous Location Motor, 20 HP, 256 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 3-Phase Hazardous Location Motor is designed for use in areas where explosive atmospheres are present, such as oil refineries, chemical plants, and mining operations. Its totally enclosed fan-cooled design and Class I, Class II, Temp. Code T3C rating ensure safe and reliable operation. With a continuous duty cycle and 1,770 RPM, this motor is suitable for applications requiring high torque and power. Its compact 256T frame and rigid base mounting make it easy to integrate into existing systems. Ideal for applications such as pumps, fans, and compressors in hazardous locations, this motor provides a reliable and efficient solution.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan-cooled design for improved cooling and reduced maintenance
- Continuous duty cycle for reliable operation in demanding environments
Top product applications:
- Oil and Gas Refineries
- Chemical Processing Plants
- Power Generation Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 48.0/23.8 A, 256T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 375.00
Product info last updated on March 9, 2026 3:14am UTC
Category: Motors
