3-Phase Hazardous Location Motor, 20 HP, 286 Frame, 230/460V AC Voltage, 1, 180 Nameplate RPM MPN:YC20P3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642013

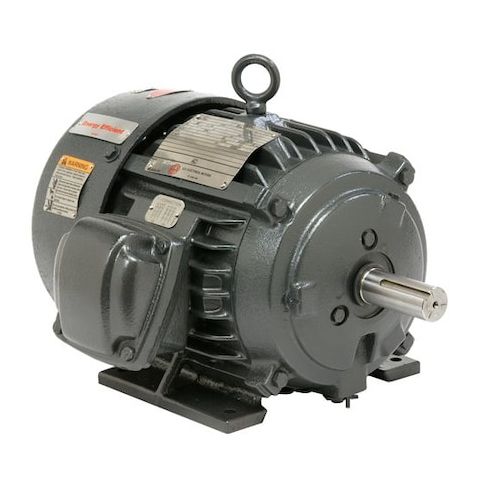

3-Phase Hazardous Location Motor, 20 HP, 286 Frame, 230/460V AC Voltage, 1, 180 Nameplate RPM
This 20 HP 3-Phase Hazardous Location Motor is designed for use in harsh environments, meeting Class I, Class II, and T2B temperature code requirements. With a nameplate RPM of 1,180 and 230/460V AC voltage, it can handle demanding applications. The motor's totally enclosed fan-cooled design and rigid base mounting ensure reliable operation in temperatures up to 40°C. Ideal for use in industries such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers continuous duty cycle and a service factor of 1.15, making it a reliable choice for critical applications.
Top product features:
- Three-phase design allows for efficient power distribution and reduced energy losses.
- Totally enclosed fan cooled motor design provides reliable operation in harsh environments.
- Continuous duty cycle enables the motor to operate at full capacity for extended periods.
Top product applications:
- Oil and Gas Refineries
- Chemical Processing Plants
- Power Generation Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 49.0/24.4 A, 286T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 460.00
Product info last updated on March 16, 2026 8:27am UTC
Category: Motors
