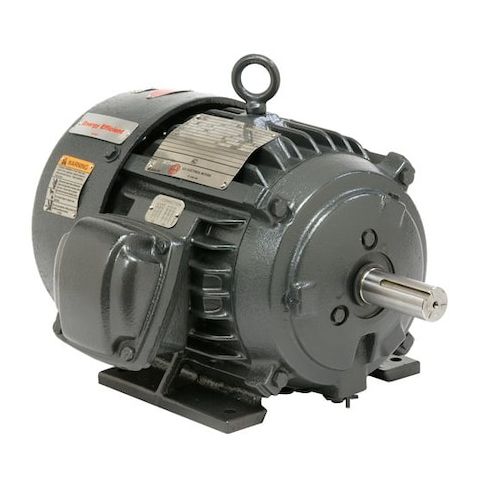

3-Phase Hazardous Location Motor, 200 HP, 447 Frame, 575V AC Voltage, 1, 785 Nameplate RPM MPN:X200P2G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3641733
3-Phase Hazardous Location Motor, 200 HP, 447 Frame, 575V AC Voltage, 1, 785 Nameplate RPM
This 3-phase hazardous location motor is a reliable and efficient solution for applications in environments with explosive or flammable gases and vapors. With a 200 HP rating and 1,785 RPM, it can handle demanding tasks in industries such as oil and gas, chemical processing, and pharmaceutical manufacturing. The motor's totally enclosed fan-cooled design ensures optimal performance in high-temperature environments, and its Class I, Class II, Temp. Code T3B rating meets the most stringent hazardous location requirements. Suitable for continuous duty cycles, this motor is an ideal choice for applications where reliability and safety are paramount.
Top product features:
- Three-Phase Design for High-Power Applications
- Totally Enclosed Fan Cooled for Efficient Heat Dissipation
- Rigid Base Mounting for Secure and Stable Installation
Top product applications:
- Oil and Gas Industry Pumps
- Chemical Processing Plants
- Paper Mills
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 200 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 180.0 A, 447T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 56.00
- Package Width: 38.00
- Package Height: 30.00
- Package Weight: 2100.00
Product info last updated on April 11, 2026 5:08am UTC
Category: Motors
