3-Phase Hazardous Location Motor, 30 HP, 326 Frame, 230/460V AC Voltage, 1, 190 Nameplate RPM MPN:YC30P3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3641636

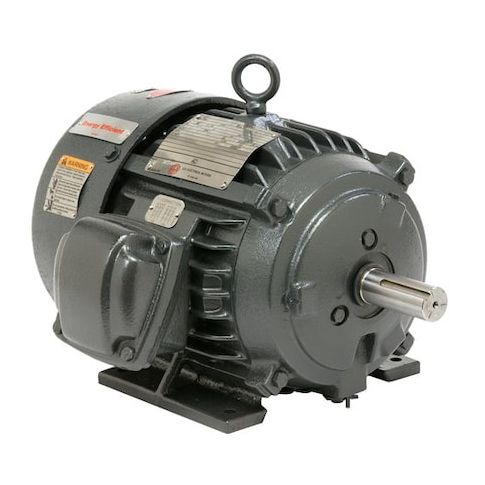

3-Phase Hazardous Location Motor, 30 HP, 326 Frame, 230/460V AC Voltage, 1, 190 Nameplate RPM
This 30 HP 3-phase hazardous location motor from US Motors is designed for use in explosive or flammable environments, meeting Class I, Class II, and Temp. Code T2B standards. Its totally enclosed fan-cooled design and rigid base mounting provide a safe and reliable operation. Suitable for continuous duty cycles, this motor is ideal for applications in oil and gas, chemical processing, and other industries where hazardous locations are present. With a high nameplate RPM of 1,190 and a wide voltage range of 230/460V AC, this motor offers efficient and consistent performance in demanding environments.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Fan Cooled for Reliable Operation in Harsh Environments
- Continuous Duty Cycle for Uninterrupted Performance
Top product applications:
- Oil and Gas Industry
- Chemical Processing Plants
- Petrochemical Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 1,190 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 74.0/37.0 A, 326 Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 31.00
- Package Height: 30.00
- Package Weight: 685.00
Product info last updated on January 19, 2026 9:48pm UTC
Category: Motors
