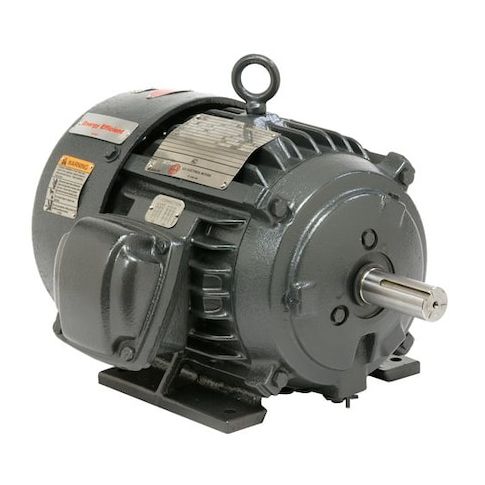

3-Phase Hazardous Location Motor, 100 HP, 405 Frame, 575V AC Voltage, 1, 780 Nameplate RPM MPN:X100P2G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3641453
3-Phase Hazardous Location Motor, 100 HP, 405 Frame, 575V AC Voltage, 1, 780 Nameplate RPM
This 3-Phase Hazardous Location Motor is designed for use in high-risk environments, meeting Class I, Class II, and Temp. Code T3C requirements. With a 100 HP rating and 1,780 RPM, it provides reliable power for demanding applications. The totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. Suitable for continuous duty cycles, this motor is ideal for use in oil and gas refineries, chemical plants, and other hazardous locations. Its compact 405T frame and NEMA Design B rating make it a versatile solution for a range of applications, from pumps and compressors to conveyor systems and more.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and reduced maintenance
- Continuous Duty Cycle for extended operation without overheating
- Three-Phase Motor Design for efficient power distribution and reduced energy consumption
Top product applications:
- Chemical Processing Plants
- Oil and Gas Refineries
- Petrochemical Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 1,780 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 90.0 A, 405T Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 40.00
- Package Width: 31.00
- Package Height: 30.00
- Package Weight: 1225.00
Product info last updated on January 20, 2026 12:01am UTC
Category: Motors
