3-Phase Hazardous Location Motor, 25 HP, 324 Frame, 230/460V AC Voltage, 1, 190 Nameplate RPM MPN:YC25P3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3641322

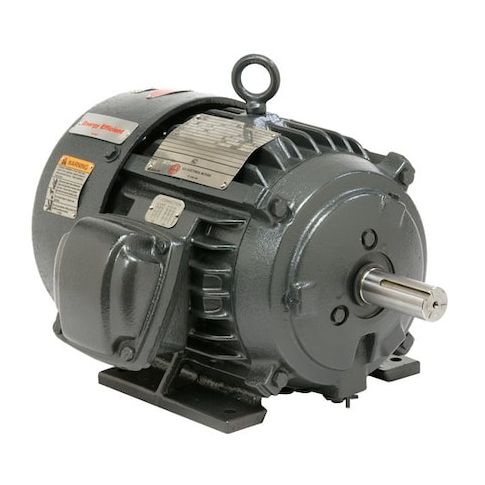

3-Phase Hazardous Location Motor, 25 HP, 324 Frame, 230/460V AC Voltage, 1, 190 Nameplate RPM
This 3-Phase Hazardous Location Motor is designed for use in environments where safety is paramount, such as oil refineries, chemical plants, and other industrial settings. With a 25 HP rating and 1,190 RPM, it provides reliable and efficient power for a variety of applications, including pumps, compressors, and conveyor systems. Its totally enclosed fan-cooled design and Class F insulation ensure long motor life and minimize downtime. Suitable for continuous duty cycles, this motor is an excellent choice for industries that require high-performance equipment in hazardous locations. Its compact 324 frame size makes it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved heat dissipation and reduced maintenance
- Three-Phase motor design for efficient and reliable operation in hazardous locations
- Continuous duty cycle for uninterrupted operation in demanding applications
Top product applications:
- Oil and Gas Extraction
- Refineries and Petrochemical Plants
- Chemical Processing Plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,190 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 61.0/31.0 A, 324 Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 31.00
- Package Height: 30.00
- Package Weight: 575.00
Product info last updated on January 27, 2026 4:38pm UTC
Category: Motors
