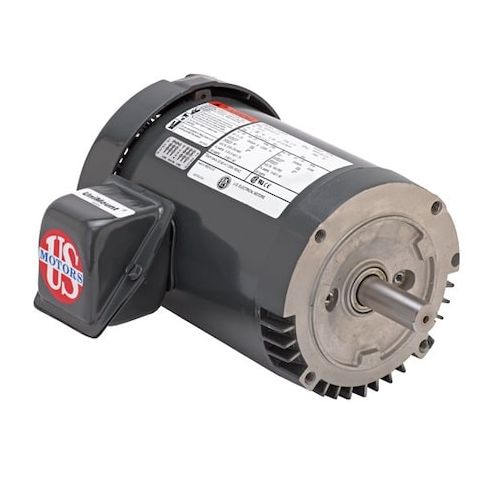

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 1, 140 Nameplate RPM MPN:U34S3ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300980535
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 1, 140 Nameplate RPM
This 3/4 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial settings. With a nameplate RPM of 1,140 and a frame size of 56C, this motor is suitable for use in environments with ambient temperatures up to 40 degrees C. Its totally enclosed air-over design provides reliable operation and protection from dust and moisture. The motor's high efficiency and continuous duty rating make it an ideal choice for applications requiring consistent performance. Suitable for use in a variety of industries, including food processing, textile manufacturing, and more.
Top product features:
- Three-phase design for efficient power transmission
- Totally enclosed air-over motor enclosure for protection from environmental factors
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,140, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1-3.2/1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.20
- Package Height: 12.10
- Package Weight: 32.70
Product info last updated on March 20, 2026 2:33am UTC
Category: Motors
