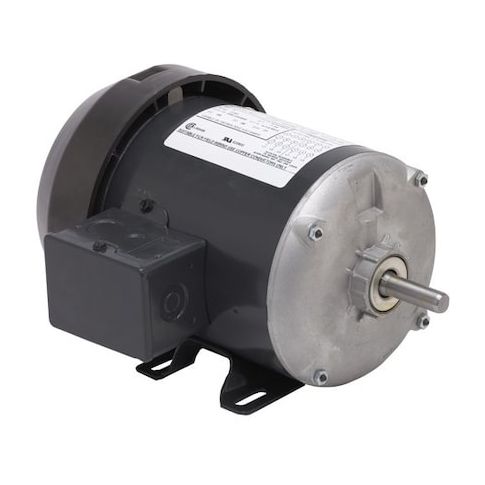

Split-Phase 1/3 hp HP, 48 Frame, 115V AC Voltage, 3, 450 RPM Nameplate RPM 10 9/16 in Overall Length MPN:T13B1N4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300721671
Split-Phase 1/3 hp HP, 48 Frame, 115V AC Voltage, 3, 450 RPM Nameplate RPM 10 9/16 in Overall Length
This 1/3 hp split-phase motor is designed for general-purpose applications, delivering reliable performance at 3,450 RPM. Suitable for use in 115V AC voltage environments, it offers a continuous duty cycle and can operate in temperatures up to 40 degrees C. The motor's totally enclosed fan-cooled design provides efficient cooling and protection from dust and moisture. Its rigid base mounting type and clockwise/counterclockwise shaft rotation make it easy to integrate into various systems. Ideal for use in industrial settings, this motor is perfect for applications such as conveyor systems, pumps, and fans, providing a cost-effective solution for a wide range of uses.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Continuous Duty Cycle allows for uninterrupted operation without overheating or wear.
- CW/CCW Motor Shaft Rotation offers flexibility for installation and compatibility with various applications.
Top product applications:
- Pump
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.4 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 10.90
- Package Height: 11.00
- Package Weight: 15.35
Product info last updated on February 6, 2026 3:18pm UTC
Category: Motors
