Split-Phase Belt Drive Motor, 1/3 HP, 48Z Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:PD6004
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2400436

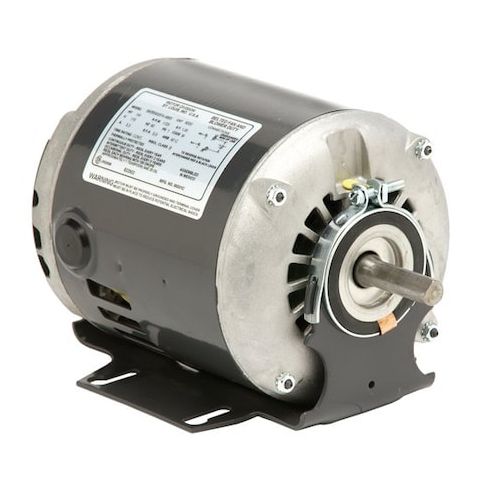

Split-Phase Belt Drive Motor, 1/3 HP, 48Z Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/3 HP Split-Phase Belt Drive Motor is ideal for use in a variety of applications, including fans and blowers. Its 1,725 nameplate RPM and single-phase design make it a reliable choice for continuous duty cycles. The motor's open drip-proof enclosure and cradle base mounting type provide easy installation and maintenance. With a service factor of 1.35 and thermal protection, this motor can withstand demanding environments. Its compact size and lightweight design make it perfect for use in residential and commercial settings, such as HVAC systems, ventilation fans, and air handling units.
Top product features:
- Split-Phase Belt Drive Motor design provides a reliable and efficient power transmission method.
- The motor's 1,725 Nameplate RPM allows for high-speed operation in a variety of applications.
- The motor's Open Drip Proof enclosure design protects internal components from dust and moisture.
Top product applications:
- Air Handling Units
- Cabinet Fans
- HVAC Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 6.6/3.1-3.3 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 8.50
- Package Height: 11.10
- Package Weight: 17.80
Product info last updated on February 23, 2026 11:24am UTC
Category: Motors
