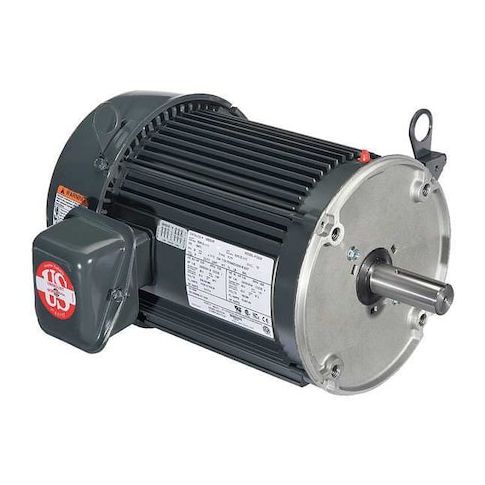

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 208-230/460V AC Voltage, 1, 770 Nameplate RPM MPN:U20P2DCR
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 208-230/460V AC Voltage, 1, 770 Nameplate RPM
This 20 HP, three-phase general purpose motor is designed for a wide range of applications including industrial manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled motor enclosure design ensures reliable operation in harsh environments and provides long-lasting performance. With a high efficiency rating of 93% and a maximum ambient temperature of 40 degrees C, this motor is ideal for continuous duty applications. Its compact 256TC frame and C-face motor mounting type make it easy to integrate into existing systems, providing a cost-effective solution for motor replacement and new installations.
Top product features:
- Three-phase operation for efficient power delivery
- Totally enclosed fan cooled motor enclosure design for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications requiring 20 HP of power
- Conveyor systems in industrial settings
- Powering fans and blowers in HVAC systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256TC, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 53.0-47.0/23.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 21.00
- Package Height: 36.00
- Package Weight: 230.00
